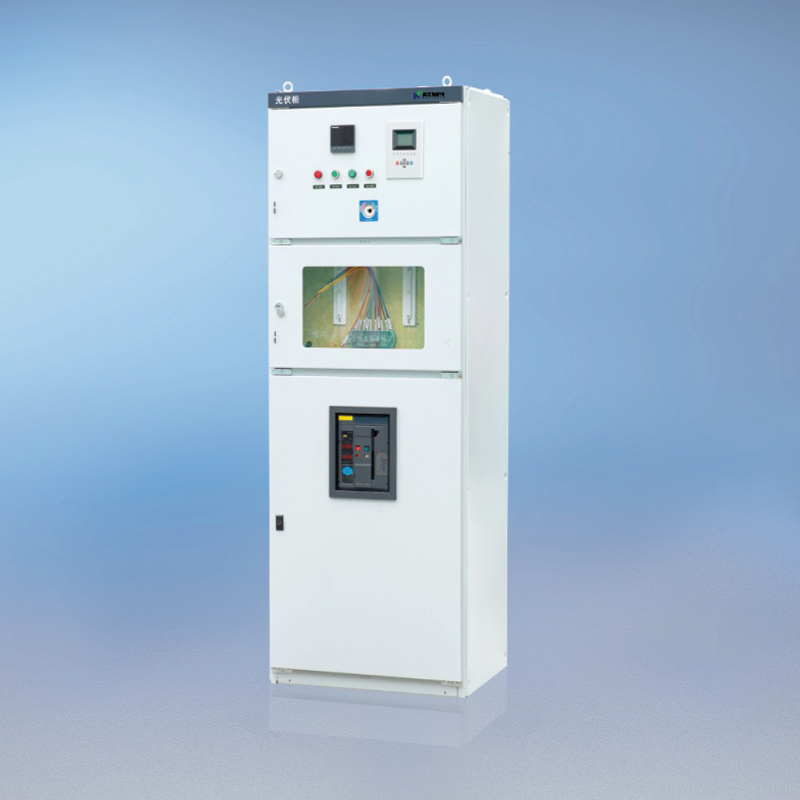

BWG Photovoltaic Grid-Connected Cabinet

In the field of renewable energy, BWG photovoltaic grid-connected cabinets are key components of high-power photovoltaic grid-connected power generation systems. This innovative product is the critical link between the grid-tied inverter or AC combiner box and the grid, ensuring seamless transfer of energy while ensuring safety and efficiency. As the demand for sustainable energy solutions continues to grow, understanding the features and functionality of BWG cabinets is critical for energy suppliers and consumers alike.

Product Details

Overview

This product is mainly used in high-power photovoltaic grid-connected power generation systems and is connected in series between the grid-connected inverter (or AC combiner box) and the power grid. The product has a series of protections such as grid low voltage, grid overvoltage, input lightning protection, system overcurrent, grid isolation, etc. The multi-function meter display and fault status indication make the system operation status clear at a glance.

Product Introduction

One of the most significant advantages of BWG photovoltaic grid-connected cabinets is its powerful protection mechanism. The cabinet is equipped with a range of protection features designed to protect the system from a variety of electrical anomalies. These functions include grid undervoltage and overvoltage protection, input lightning protection, system overcurrent protection, and grid isolation. These comprehensive protection measures ensure that the PV system operates within safe parameters, thereby increasing its service life and reliability. The addition of a multi-function instrument display and fault condition indication further simplifies monitoring, allowing operators to assess the system’s operating status at a glance.

The cabinet also uses advanced residual current protection technology. This function automatically opens the circuit breaker when the grid loses power or the bias voltage exceeds 20%. When the grid returns to normal, the circuit breaker closes automatically, ensuring rapid resumption of operation. The BWG cabinet supports manual and automatic operation modes, allowing users to flexibly manage the system according to their needs. This dual functionality is especially useful in scenarios where immediate human intervention may be required.

Another noteworthy aspect of the BWG PV grid-connected cabinet is its molded case recloser. The component is designed to automatically trip when the grid loses power or the bias voltage exceeds a specified threshold, with a delay trip time adjustable between 0 and 10 seconds. Similar to a residual current protector, a reclosing switch automatically closes when the grid returns to normal conditions. The ability to switch between manual and automatic operation enhances user control and makes it easier to manage the system in a variety of operating situations.

In addition to the core protection functions, BWG cabinets also provide optional functions to further enhance their practicality. These functions include online power quality monitors, anti-islanding protection devices and fault disconnect devices. Online power quality monitors can assess the power quality of the incoming grid in real time, while anti-islanding protection devices ensure that the system does not continue to operate in an islanded manner during a grid fault, thus avoiding potential dangers. The fault disconnect device can disconnect the system in time when a fault occurs, adding additional safety protection for equipment and personnel safety.

BWG photovoltaic grid-connected cabinet is an important component of high-power photovoltaic system, providing comprehensive protection features and functions. Its ability to effectively prevent electrical anomalies, combined with user-friendly operation modes and optional enhanced functions, has become a reliable choice for energy suppliers and consumers.
