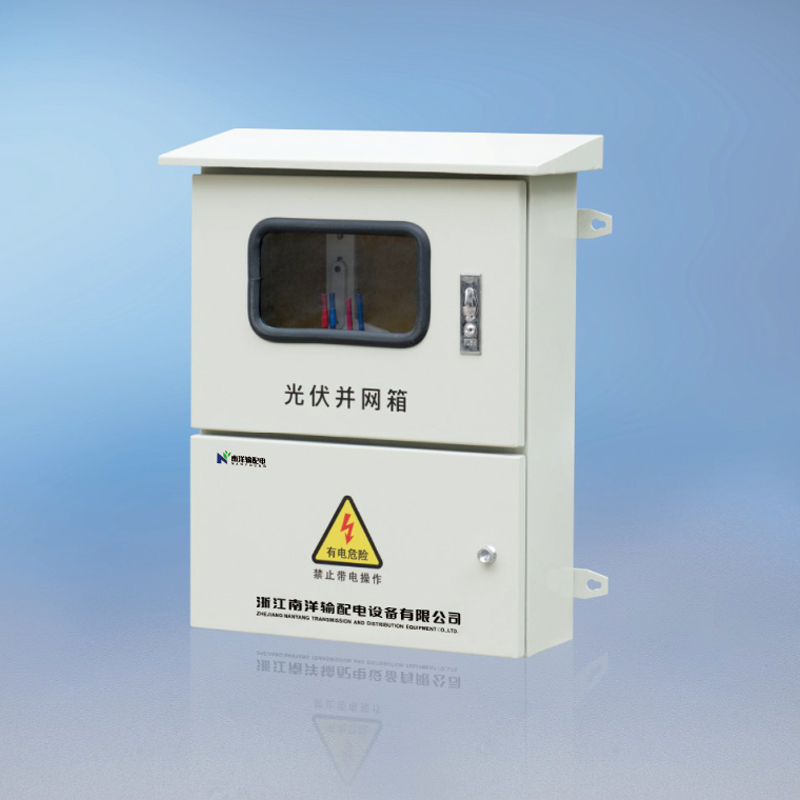

BWX Photovoltaic Grid-Connection Box
Overview
BWX photovoltaic grid-connected box is suitable for photovoltaic string power generation system, which is an important power protection part connecting string inverter and power grid system. The circuit protection part adopts photovoltaic grid-connected circuit breaker and pull-ring isolating switch, and adopts secondary lightning protection. The protection level is the same as string inverter, which is IP65, meeting the requirements of outdoor installation, waterproof, dustproof, UV protection, salt spray corrosion resistance, etc. The internal structure of this product is simple and clear, and the wiring is neat and reasonable. It has high reliability and simple maintenance. It can be installed on the wall outdoors and can adapt to various harsh environments. In addition to standard materials and sizes, it can be customized according to user requirements.
Features
High reliability
·Use photovoltaic grid-connected circuit breakers;
·Use photovoltaic special pull-ring isolating switch, which is safer to operate. Strong adaptability
·IP65 protection level, waterproof, dustproof and UV-proof;
·Strict high and low temperature tests, applicable to a wide range of areas;
·Simple installation, simplified system wiring, and convenient wiring;
·The box is made of metal materials such as cold-rolled steel plates.
Product Introduction
At the heart of the BWX PV grid-connected box is its circuit protection mechanism, which includes a PV grid-connected circuit breaker and a dedicated pull-ring disconnect switch. These components are designed to enhance operational safety and minimize the risk of electrical failures. Secondary lightning protection further protects the system from unexpected surges, ensuring that both the inverter and the grid are protected. This level of protection is critical to maintaining the integrity and reliability of solar power generation systems, especially in areas susceptible to severe weather.
The BWX junction box has an excellent IP65 protection rating, making it ideal for outdoor installations. This rating indicates that the junction box is both waterproof and dustproof, and can reliably withstand a variety of environmental factors.The product is designed to resist UV and salt spray corrosion, making it ideal for coastal areas or areas with high humidity. Rigorous high and low temperature testing ensures that the BWX junction box can operate effectively in various climate conditions, further enhancing its adaptability and reliability in various environments.
One of the highlights of the BWX PV grid-connected box is its user-friendly design. Its simple and clear internal structure and neat and orderly wiring simplify installation and maintenance. This thoughtful design not only simplifies the installation process, but also reduces the possibility of errors during installation. The box is made of cold-rolled steel and other durable metal materials to ensure long-lasting durability in harsh outdoor conditions. Its customization options allow users to customize the box according to their own needs, choosing different materials and sizes as needed.
The BWX PV Grid Connector is an essential component of any PV string power generation system. Its high reliability, strong adaptability and user-friendly design make it an ideal choice for residential and commercial solar installations. The BWX Grid Connector plays an important role in optimizing the performance of solar energy systems by providing necessary circuit protection and ensuring safe operation. As the demand for renewable energy continues to grow, investing in quality components like the BWX PV Grid Connector is essential to achieving efficient and sustainable power generation.
