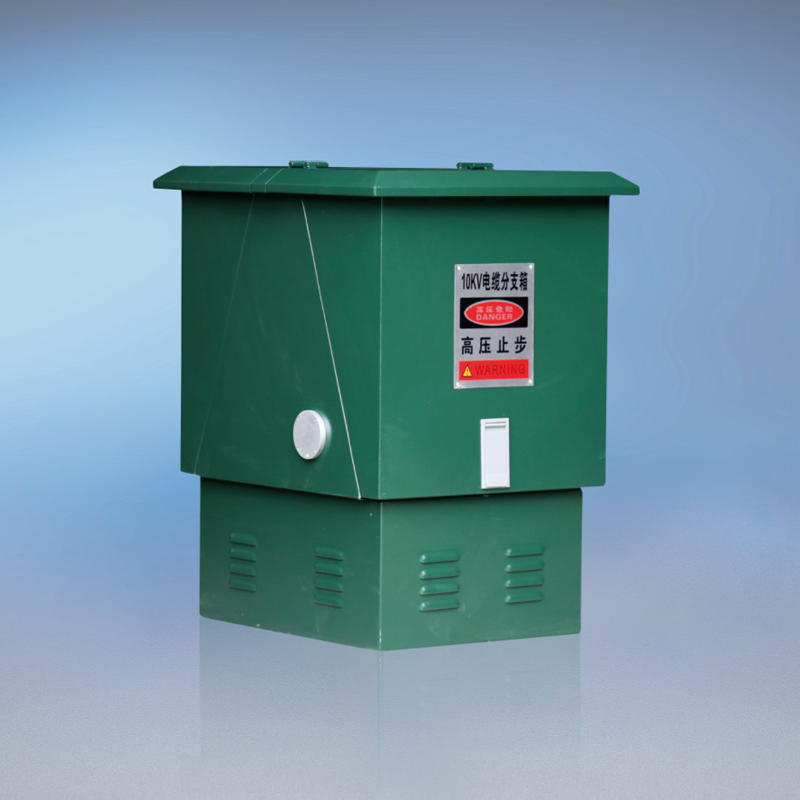

DFW-12 Outdoor High Voltage Cable Distribution Box

The DFW-12 outdoor high voltage cable distribution box is an integral part of cable engineering equipment and has become increasingly popular in power distribution systems in recent years. Designed to achieve efficient and reliable power distribution, this innovative junction box features a two-way door opening mechanism and uses butt sleeves as connecting busbars. Its compact design shortens cable lengths and ensures a clear layout of cables while eliminating the need for long spans of crossed three-core cables. The DFW-12 is equipped with a cable connector that complies with the DIN47636 standard, typically a bolt-on cable connector rated for 630A.

Product Details

Overview

The outdoor high voltage cable distribution box is a cable engineering equipment widely used in power distribution network systems in recent years. Its main features are two-way opening doors and the use of butt sleeves as connecting busbars. It has the significant advantages of short length, clear cable arrangement, and no need for large-span crossing of three-core cables. The cable connector used is in compliance with DIN47636 standard. Generally, bolt-fixed cable connectors with a rated current of 630A are used.

Product Introduction

A highlight of the DFW-12 is its two-way door design, which improves the convenience of maintenance and inspection. This design allows technicians to easily access the internal components of the distribution box without extensive disassembly. The busbars are connected with butt sleeves, which not only simplifies the installation process, but also ensures safe and reliable connections between cables. This feature is especially important in outdoor environments where severe weather may pose a challenge to the integrity of the cables.

The compactness of the DFW-12 outdoor high voltage cable distribution box is another significant advantage. Its short length helps cables to be arranged more orderly, thus reducing the risk of cable entanglement and potential damage during installation or maintenance. This design concept is essential in high-voltage applications where safety and reliability are critical. By minimizing the need to cross long spans of three-core cables, the DFW-12 helps simplify the installation process, making it the first choice for many power distribution projects.

In terms of compliance and safety, the DFW-12 complies with the DIN47636 cable connector standard. This ensures that the connectors used in the distribution box meet strict safety and performance standards, giving operators and maintenance personnel peace of mind. The use of bolt-on cable connectors rated at 630A further improves the reliability of the system, allowing for efficient power distribution without compromising safety. Strict adherence to industry standards highlights the superior quality and reliability of the DFW-12, making it a reliable choice for outdoor high-voltage applications.

The DFW-12 outdoor high-voltage cable junction box represents a significant advancement in cable engineering equipment for power distribution systems. Its innovative design features, including two-way door opening and butt-sleeve connection methods, improve its efficiency and reliability. The compact design facilitates clear cable layout while meeting DIN47636 standards to ensure safety and performance. As the demand for reliable power distribution continues to grow, the DFW-12 stands out as a practical and efficient solution for outdoor high-voltage applications, meeting the needs of modern power distribution systems.
