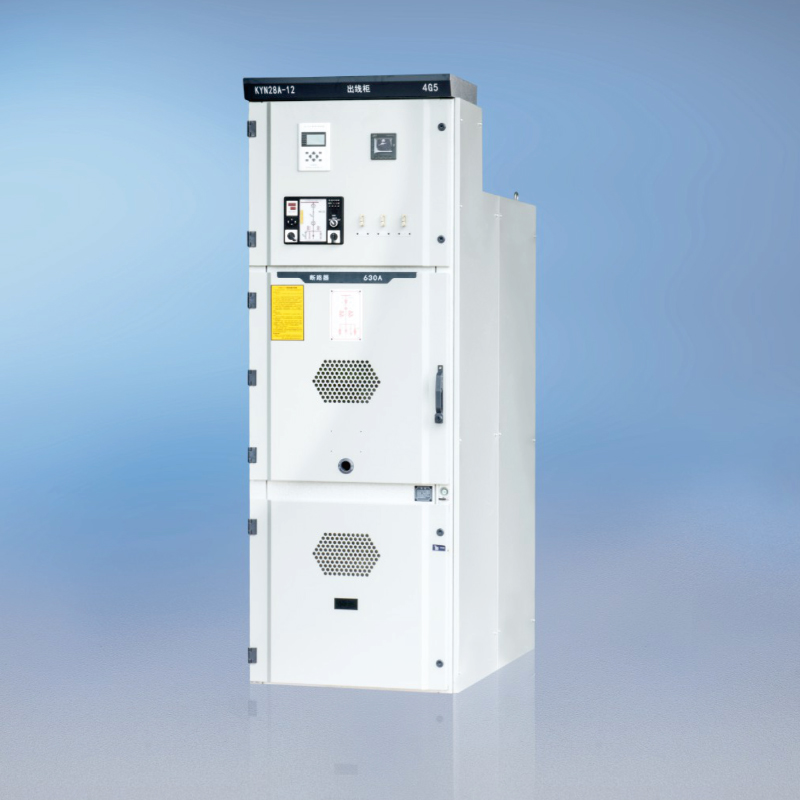

KYN28-12 High-Voltage AC Metal-Enclosed Switchgear

Overview

KYN28-12 high-voltage AC metal-enclosed switchgear is suitable for 3.6-12kV three-phase AC 50Hz power grid, as a means of receiving and distributing electric energy, and controlling, monitoring and protecting circuits. It can be used for single busbar, single busbar segmented system or double busbar system. The switchgear complies with the requirements of IEC298 "AC metal-enclosed switchgear and controlgear with rated voltage above 1kV and below 52kV", IEC694 "Common terms for high-voltage switches and controlgear", my country's GB3906-2006 "3.6kV~40.5kV AC metal-enclosed switchgear and controlgear", Germany's DIN.VDE0670 "AC switchgear with rated voltage above 1kV" and other standards. It also has a complete and reliable anti-misoperation function.

Features

KYN28-12 high-voltage AC metal-enclosed switchgear (hereinafter referred to as switchgear) is a new product designed and developed by our company based on the absorption of advanced manufacturing technologies at home and abroad. It can replace various old metal-enclosed switchgears, such as KYN1-12, JYN2-12 and other series products. Its products have the following obvious advantages:

·The shell of the product is completely assembled with bolts, which has high mechanical strength and effectively ensures the neatness and beauty of the product. The cabinet door is spray-coated with plastic, which has strong impact resistance and corrosion resistance. The product shell has an IP4X protection level. (It can be changed to iron plate according to customer needs).

·The switch of this product can be equipped with VD4 vacuum circuit breaker and C3 series fixed load switch produced by ABB. It can also be equipped with various domestic series vacuum circuit breakers (such as VS1, VH1, VK, ZN28) to replace similar foreign products.

·No matter which circuit breaker is selected, the air insulation distance of the bare conductor can be guaranteed to be greater than 125mm, and the composite insulation distance is greater than 60mm. The circuit breakers have the unique advantages of long life, low maintenance and small size.

Product Introduction

One of the highlights of the KYN28-12 switchgear is its sturdy structure. The product housing is assembled as a whole with bolts, ensuring its high mechanical strength and durability. This design not only enhances the structural integrity of the switchgear, but also ensures a neat and beautiful appearance. The cabinet door is sprayed with plastic, which has excellent impact resistance and corrosion resistance. The switchgear has an IP4X protection level and can withstand various environmental conditions. In addition, we also provide customized options such as iron plate housing to meet the specific needs of customers.

KYN28-12 switchgear has the versatility to be compatible with a variety of circuit breakers. It can be equipped with VD4 vacuum circuit breakers and C3 series fixed load switches produced by ABB, as well as a series of domestic vacuum circuit breakers including VS1, VH1, VK and ZN28. This flexibility enables users to select the most suitable circuit breaker for their specific application to ensure optimal performance and reliability. Regardless of the circuit breaker selected, KYN28-12 ensures that the air insulation distance of the bare conductor exceeds 125mm and the composite insulation distance is greater than 60mm, thereby improving safety and operating efficiency.

In addition to its rugged construction and good compatibility, the KYN28-12 switchgear is designed with a focus on long life and low maintenance requirements. The circuit breakers integrated into the switchgear are known for their long service life, which reduces the frequency of maintenance. This feature not only reduces operating costs but also minimizes downtime, making the KYN28-12 an economically viable choice for grid operators. The compact size of the circuit breaker further improves the overall efficiency of the switchgear, making it easier to install and integrate into existing systems.

The KYN28-12 high-voltage AC metal-enclosed switchgear represents a significant advancement in high-voltage switchgear technology. Its rugged construction, compatibility with a wide range of circuit breakers, and low maintenance requirements make it an ideal choice for modern grid applications. As the industry continues to evolve and the demand for more reliable and efficient power solutions grows, the KYN28-12 is a reliable choice for today's power infrastructure challenges. By investing in this advanced switchgear, operators can ensure the safety, reliability, and efficiency of their distribution systems.
