Is a Switchgear the Same as a Breaker?

When discussing electrical systems, terms like switchgear and breaker often appear, but are they the same? The answer is no—they are related but fundamentally different. While both are critical components in managing electrical circuits, they serve distinct purposes and are often used together to ensure the safety and efficiency of electrical systems. In this article, we will explore the differences between switchgear and breakers, their functions, and their importance in electrical setups.

What is Switchgear?

Switchgear refers to a collection of devices used to control, protect, and isolate electrical circuits and equipment within a system. Essentially, it is an assembly of various components like circuit breakers, switches, and fuses housed in a protective enclosure. Switchgear is instrumental in preventing equipment damage and protecting personnel from electrical hazards. It operates in a way that allows for the safe isolation and control of electrical systems during maintenance, operation, and fault scenarios.

Switchgear is typically used in industrial, commercial, and utility applications and plays a crucial role in distributing power. Depending on the voltage level, there are three main types of switchgear:

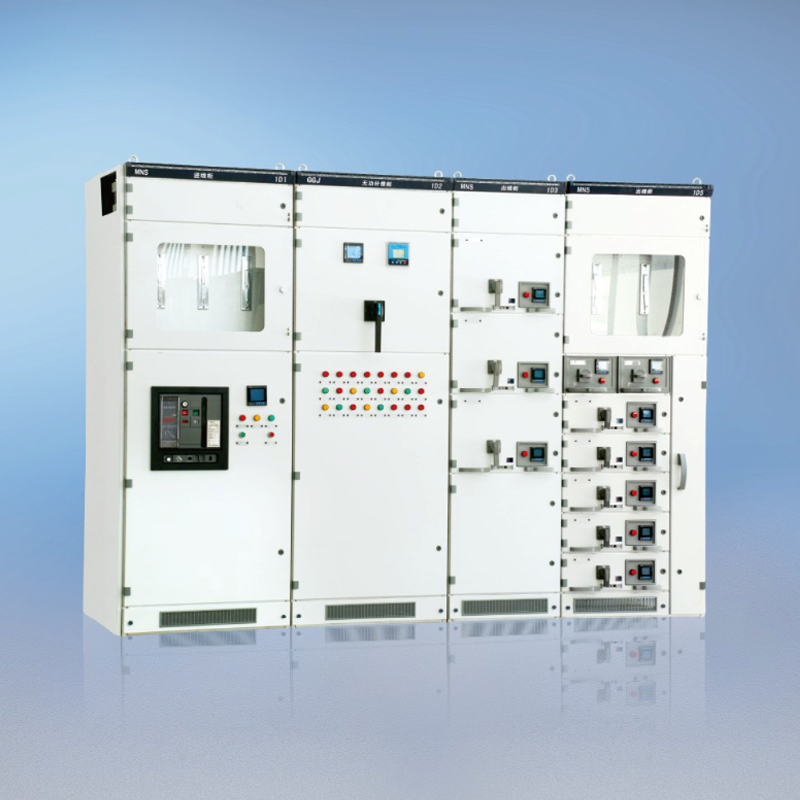

• Low-Voltage Switchgear: Used for systems with voltages below 1,000V, commonly applied in commercial buildings and small industries.

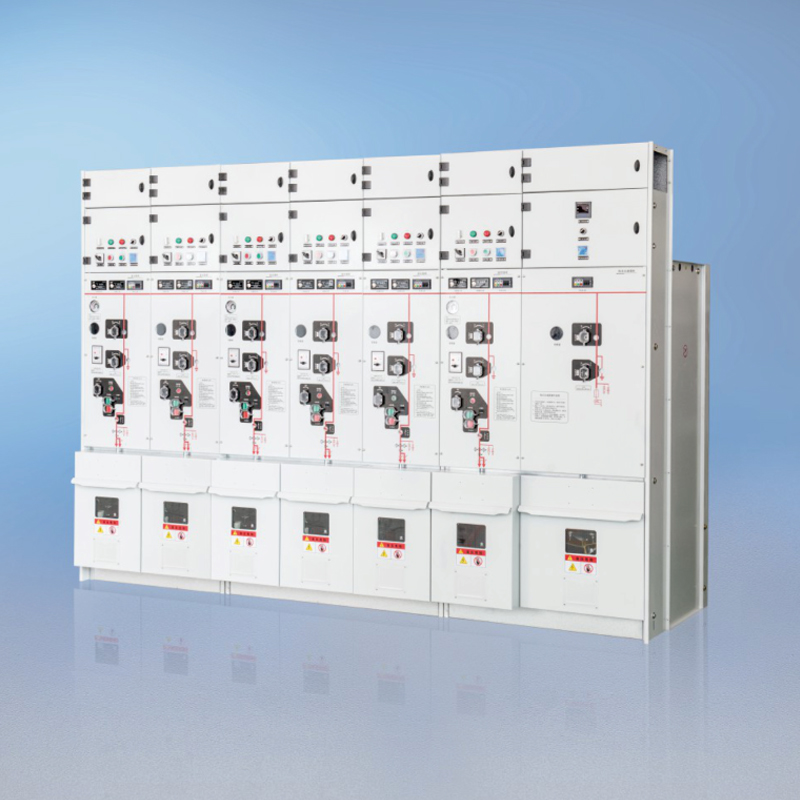

• Medium-voltage switchgear: Suitable for voltages between 1,000V and 36,000V, often used in industrial plants and distribution networks.
• High-voltage switchgear: Designed for voltages above 36,000V, primarily used in substations and electric grids.

What is a Breaker?

A breaker, or circuit breaker, is a specific component within the switchgear system. It is a safety device designed to interrupt the flow of current in the event of an electrical overload, short circuit, or fault. By doing so, a breaker prevents damage to the electrical system, equipment, and potential harm to operators.

Breakers come in various forms, tailored for different applications:

• Molded Case Circuit Breakers (MCCB): Often used in industrial and commercial settings for overcurrent protection.
• Low-voltage circuit breakers: Commonly found in residential and light commercial setups.
• High-voltage circuit breakers: Used in substations for large-scale electrical systems.

Key Differences Between Switchgear and Breakers

To understand how switchgear electrical systems are organized, it’s important to identify the distinct roles of these two elements:

Function: A switchgear is a complete system designed for multiple protective applications, while a breaker is a single device specifically focused on interrupting electrical faults.

Composition: Switchgear includes a combination of components such as circuit breakers, disconnect switches, relays, and bus bars. Breakers, on the other hand, are standalone devices.

Application: Switchgear is typically used in large power distribution systems, whereas circuit breakers are deployed in smaller systems or as part of the switchgear itself.

Switchgear Components

Switchgear systems are composed of various components that work together to provide power distribution and protection. Here’s an overview:

• Circuit breakers: The core protective element for interrupting current during faults.
• Disconnect switches: Enable manual isolation of specific electrical circuits.
• Bus bars: Conduct electricity within the switchgear system.
• Relays: Detect abnormal conditions and trigger appropriate protective devices.
• Instrument transformers: Provide measurement and operational data for the system.

FAQ: Common Questions About Switchgear and Breakers

What is switchgear?

Switchgear is an assembly of electrical equipment designed to manage power flow, ensure system protection, and provide controlled isolation for maintenance.

What does a breaker do?

A breaker interrupts the flow of current during faults, protecting systems, equipment, and personnel from damage or harm.

Can breakers work without switchgear?

Yes, breakers can operate independently in smaller systems, but larger applications require switchgear for effective power control and protection.

What are the types of switchgear?

The three primary types include low-voltage, medium-voltage, and high-voltage switchgear, designed for varying voltage ranges and applications.

Are switchgear and panelboards the same?

No, panelboards are simpler devices designed primarily for distributing electricity across circuits in smaller settings, while switchgear includes more complex functions such as isolation and protection.

Conclusion

To answer the question: “Is a switchgear the same as a breaker?”—No, they are not. Switchgear refers to the entire system composed of multiple components for power distribution, protection, and control, while a breaker is a single device specialized in interrupting current flow during faults. Understanding the difference is essential for anyone involved in electrical systems, whether as a buyer, installer, or system designer. By knowing the roles and capabilities of switchgear and breakers, you can make informed decisions for your power system needs.
