Switchgear plays a crucial role in modern electrical power systems, ensuring safe and reliable operation by isolating and protecting electrical equipment. To better understand its functions, we categorize it into two main types: primary switchgear and secondary switchgear. This distinction allows us to break down their applications, components, and benefits, making it easier for buyers, engineers, and decision-makers to select the right solution for their needs.

Understanding Primary Switchgear

Primary switchgear is designed to handle high-voltageelectricity, typically used in transmission and distribution systems for voltages above 36 kV. It forms the backbone of electrical power grids, enabling the transmission of electricity over long distances. Primary switchgear is critical for ensuring efficient and safe energy distribution from power generation plants to substations. Key features of primary switchgear include: 1. High Fault Current Withstand Capability: Built to manage high fault currents in transmission systems. 2. Robust Design: Engineered for durability and long-term reliability in harsh operating environments. 3. Advanced Protection Systems: Incorporates protective relays, circuit breakers, and isolators to ensure the safety of personnel and equipment. Examples of primary switchgear include gas-insulated switchgear (GIS), air-insulated switchgear (AIS), and primary integrated complete Ring Main Switchgear stations.

What Is Secondary Switchgear?

Secondary switchgear is typically used in medium- to low-voltage systems, generally below 36 kV. This equipment is designed for distribution networks where electricity is delivered to end users such as homes, businesses, and factories. Compared to primary switchgear, secondary systems are more compact, cost-effective, and easier to install, making them suitable for localized power distribution. The secondary switchgear often incorporates ring main units (RMUs), distribution boards, and Compact Substations. RMUs, in particular, are widely used in secondary systems due to their flexibility and safety.

Key Benefits of Secondary Switchgear

- Compact Size: Ideal for urban environments and indoor installations. - Cost Efficiency: Requires less investment compared to primary switchgear. - Enhanced Safety: Ring main units offer superior arc fault protection and simple operating mechanisms.

How Does a Ring Main Unit (RMU) Work in Secondary Switchgear?

A ring main unit is a compact, sealed, and insulated switchgear unit typically used in secondary distribution networks. It facilitates the safe distribution of electricity to multiple end users. Let’s break down its working principle: 1. Configuration: RMUs are designed in a closed-loop (ring) configuration, allowing the supply to be maintained even if one section of the network experiences an issue. This ensures higher network reliability. 2. Components: RMUs integrate load break switches, circuit breakers, and fuses in a single housing. These components control and isolate different parts of the circuit. 3. Operation: In normal operation, the load break switch allows power to flow through the loop. During maintenance or faults, the circuit breaker isolates the faulty section without disrupting the entire distribution system. This versatile unit is highly valued for its simplicity and reliability, making it an essential element in urban distribution grids.

Primary vs Secondary Switchgear: Key Differences

To offer more clarity, here is a concise comparison of primary and secondary switchgear: - Voltage Levels: - Primary: Handles high voltage (above 36 kV). - Secondary: Deals with medium to low voltage (below 36 kV). - Applications: - Primary: Electricity transmission and main power distribution. - Secondary: Localized distribution to end consumers (homes, businesses). - Design & Size: - Primary: Larger, with robust designs for outdoor or substation use. - Secondary: Compact, often used in confined urban environments. - Cost: - Primary: High upfront cost due to advanced systems and components. - Secondary: Relatively low capital cost, ideal for medium-scale applications.

FAQs About Primary and Secondary Switchgear

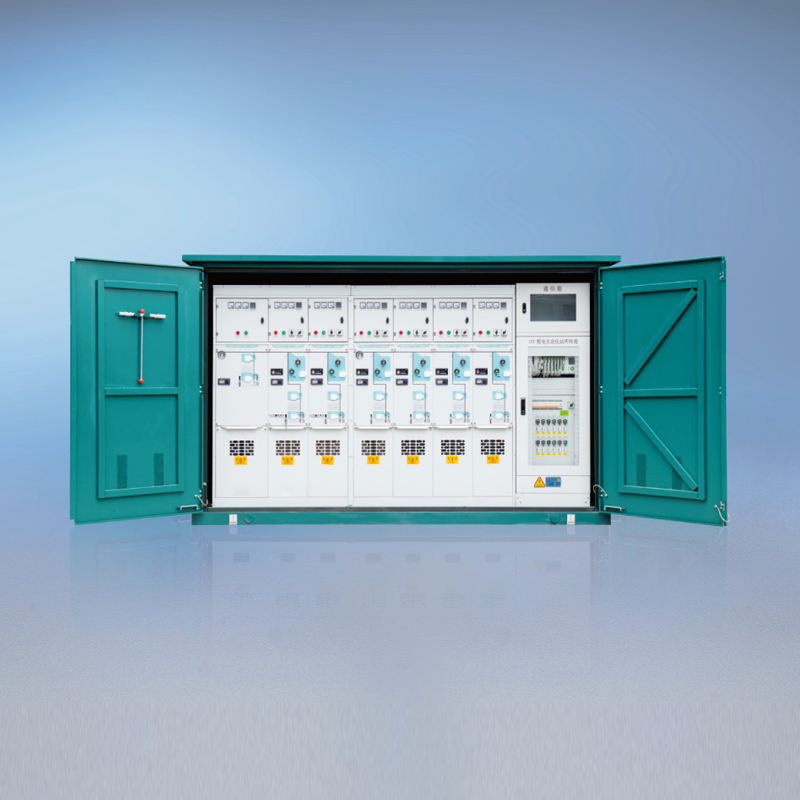

What is primary and secondary switchgear? Primary switchgear refers to high-voltage equipment used in power transmission networks for voltages above 36 kV. Secondary switchgear, on the other hand, deals with medium- to low-voltage distribution systems (below 36 kV) that deliver electricity to end users. What is the role of a ring main unit in secondary switchgear? A ring main unit (RMU) allows for streamlined electricity distribution in secondary networks. Its working principle involves creating a loop configuration for uninterrupted power supply, even during faults or maintenance. Can primary and secondary switchgear be integrated into one system? Yes, advanced solutions like the primary and secondary integrated complete ring main switchgear station terminal combine the functionalities of both systems. These setups are ideal for industrial or large commercial applications requiring higher reliability and efficiency. What are the maintenance requirements for primary and secondary switchgear? Primary switchgear requires periodic and often more intensive maintenance due to higher operational voltages. Secondary switchgear, particularly RMUs, is typically low-maintenance and designed for minimal intervention.

Conclusion

When selecting between primary and secondary switchgear, understanding their distinct roles is essential. Primary switchgear facilitates efficient energy transmission over long distances, while secondary switchgear, such as ring main units (RMUs), ensures reliable distribution to end users. Each type serves critical purposes in the energy supply chain, and their integration can further enhance system performance. Whether you're exploring solutions like gas-insulated switchgear, air-insulated switchgear, or secondary switchgear with advanced ring main unit working principles, choosing the right equipment tailored to your specific needs is key to achieving a reliable and sustainable power network. By leveraging these systems with the correct configuration, businesses and utilities can ensure optimal performance while minimizing costs and downtime.
