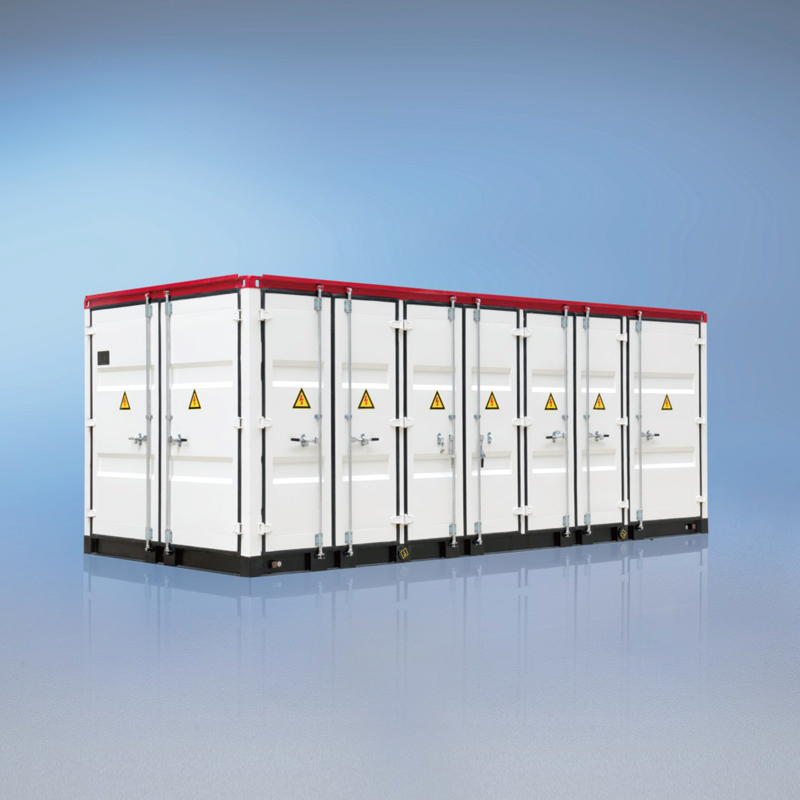

NYYZC Integrated New Energy Photovoltaic Prefabricated Cabin
Overview
NYYZC new energy integrated photovoltaic prefabricated cabin, European style integrated machine.The layout of the European all-in-one machine is similar to that of the conventional European transformer. The shell of the whole machine is made of a container shell, which contains a transformer room, a high-voltage room, a communication power cabinet room and an inverter room. The rooms are separated by partitions or corrugated boards. The inverter and the high and low voltage rooms are distributed on both sides of the transformer room, and the overall structure is a "目" shape. The inverter is arranged in a mirror image, and a lower wellhead is set between the inverter aisles. The side outlet of the inverter is connected to the low-voltage bushing on one side of the transformer through a copper bus and a flexible connection. The transformer conventionally uses a dry-type transformer, equipped with a vacuum load switch plus a fuse combination electrical appliance. The vacuum load switch plus a fuse combination electrical appliance is connected to the transformer room through a high-voltage cable. The communication power cabinet is similar to the American all-in-one machine. The heat dissipation method of the transformer usually adopts natural air cooling or forced air cooling.The container-type shell is equipped with ventilation shutters, fan outlets and fans for internal and external air circulation of the entire box-type transformer. Fire emergency lights, fire detectors, explosion-proof lighting and fire extinguishers are installed in the inverter room.
Normal use environment conditions
- Altitude: ≤3000 meters;
- Ambient temperature: -45℃~+45℃;
- Ambient humidity: The daily average relative humidity is not more than 60%, and the monthly average is not more than 90%; there is no fire, explosion hazard, chemical corrosion or severe vibration.
Product Introduction
The NYYZC cabin adopts a European integrated layout, reminiscent of traditional European transformers. This design combines functionality and aesthetics, ensuring that it can seamlessly blend into a variety of environments. The cabin structure consists of a sturdy container shell with several important components, including the transformer room, high-voltage room, communication power cabinet room and inverter room. Each room is cleverly divided by partitions or corrugated boards, which optimizes space and improves operating efficiency. The cabin adopts a "目"-shaped design, with the inverter room and high and low voltage rooms symmetrically distributed on both sides of the transformer room.
A highlight of the NYYZC nacelle is the layout of its inverters, which adopts a mirrored design to maximize the use of space. A lower wellhead is provided between the inverter channels for easy inspection and maintenance. The side outlet of the inverter is connected to the low-voltage bushing on one side of the transformer through a copper busbar and a flexible connector to ensure seamless energy transmission. The nacelle uses a dry-type transformer and is equipped with a vacuum load switch and a fuse combination appliance. This configuration not only improves safety, but also ensures reliable performance under various operating conditions.
The design of the communication power cabinet in the NYYZC cabin is similar to that of the American all-in-one machine, providing a familiar interface for operators. The cooling system is carefully designed to achieve optimal performance, using natural air cooling or forced air cooling to maintain an ideal operating temperature. The containerized enclosure is equipped with ventilation louvers, air outlets and fans to promote internal and external air circulation. This thoughtful design ensures that the cabin remains functional and efficient even in harsh environmental conditions.
NYYZC New Energy Integrated Photovoltaic Prefabricated Cabin can withstand a variety of environmental factors. It is designed for areas with an altitude of up to 3000 meters and can operate effectively in ambient temperatures of -45℃ to +45℃. The cabin is also carefully designed to withstand high humidity, with the daily average relative humidity not exceeding 60% and the monthly average relative humidity not exceeding 90%. In addition, the cabin is also fireproof, explosion-proof, chemical corrosion-resistant and resistant to severe vibration, making it a reliable choice for various applications.
The NYYZC new energy integrated photovoltaic prefabricated cabin represents a major advancement in energy technology. Its innovative design, strong safety performance and environmental adaptability make it an ideal solution for meeting modern energy needs. As the world continues to shift to sustainable energy, products like the NYYZC cabin will play a key role in shaping the future of energy systems.
