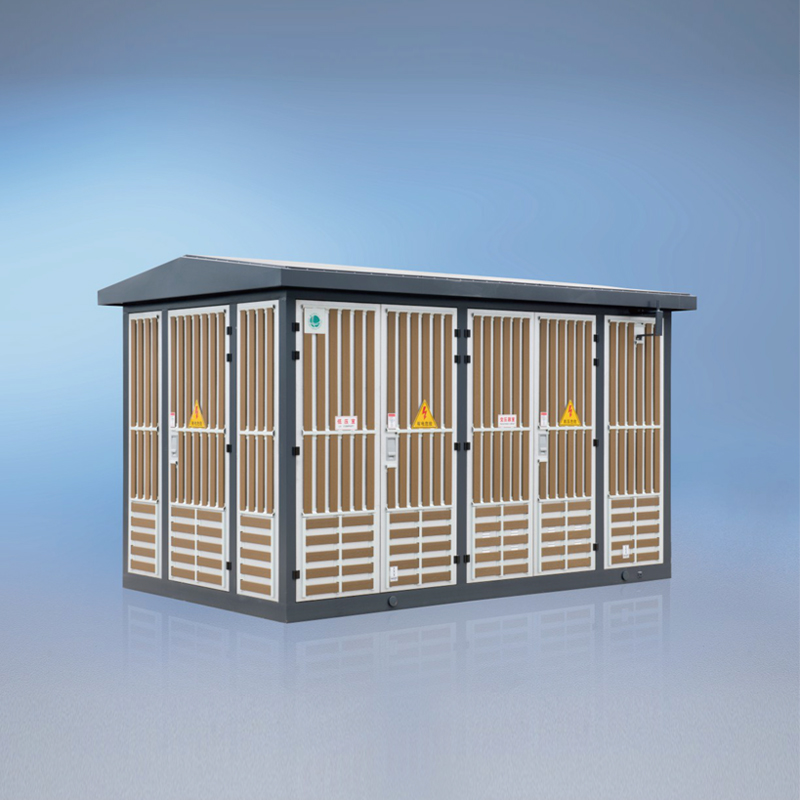

YB□-12 High-Low Voltage Prefabricated Substation
Overview
This product fully complies with the GB17467 "High-voltage and Low-voltage Prefabricated Substation" standard. It is suitable for urban public power distribution, street light power distribution, industrial and mining enterprises, urban buildings, residential areas, oil field docks, hotels, parks and construction sites, etc., and can realize ring network or terminal type power supply mode.
Environmental conditions for use
Altitude: ≤1000m;
Ambient temperature: -25℃~+40℃;
Temperature: Maximum monthly average temperature +30℃, maximum annual average temperature +20℃;
Relative humidity: daily average value is not more than 95%, monthly average value is not more than 90%;
Earthquake resistance: horizontal acceleration 0.4m/s², vertical acceleration 0.15m/s²;
The installation site should be free from severe impact, serious pollution and chemical corrosion, conductive dust and explosion hazards. If it cannot meet the requirements of normal use conditions, please negotiate with our company to solve the problem.
Product Introduction
A key feature of the YB□-12 substation is its rugged design, which enables it to operate effectively in a variety of environmental conditions. Designed to be installed at altitudes up to 1,000 meters, the substation is suitable for a variety of geographical locations. It can achieve optimal operation in an ambient temperature range of -25℃ to +40℃, and can maintain reliable operation even in extreme weather conditions. The monthly average maximum temperature is capped at +30℃, and the annual average maximum temperature is capped at +20℃. This temperature regulation is essential to maintaining the integrity and performance of electrical components within the substation.
Humidity control is another key aspect of the YB□-12 design. The substation is designed to withstand relative humidity with a daily average of no more than 95% and a monthly average of no more than 90%. This feature is particularly important to prevent moisture-related problems that can damage electrical systems. The YB□-12 is earthquake-resistant, with a horizontal acceleration resistance of 0.4m/s² and a vertical acceleration resistance of 0.15m/s². This earthquake resistance ensures that the substation can operate normally even under seismic disturbances, making it a reliable choice in earthquake-prone areas.
Installation conditions are critical to the performance of the YB□-12 high and low voltage prefabricated substation. The installation site must be free from severe impact, severe pollution and chemical corrosion. Conductive dust and explosion hazards must be avoided to ensure the safe operation of the substation. If standard installation conditions cannot be met, it is recommended to consult the manufacturer to explore potential solutions. This proactive approach helps reduce risks and improve the service life and reliability of the substation.
The YB□-12 high and low voltage prefabricated substation is a versatile and reliable solution that can meet various power distribution needs. It complies with the GB17467 standard, has a rugged design, and can adapt to various environmental conditions, making it an ideal choice for urban and industrial applications. By understanding the relevant specifications and requirements of the YB□-12, stakeholders can make informed decisions to improve the efficiency and reliability of the distribution system. Whether it is urban public power distribution or industrial applications, the YB□-12 can provide excellent performance and reliability.
