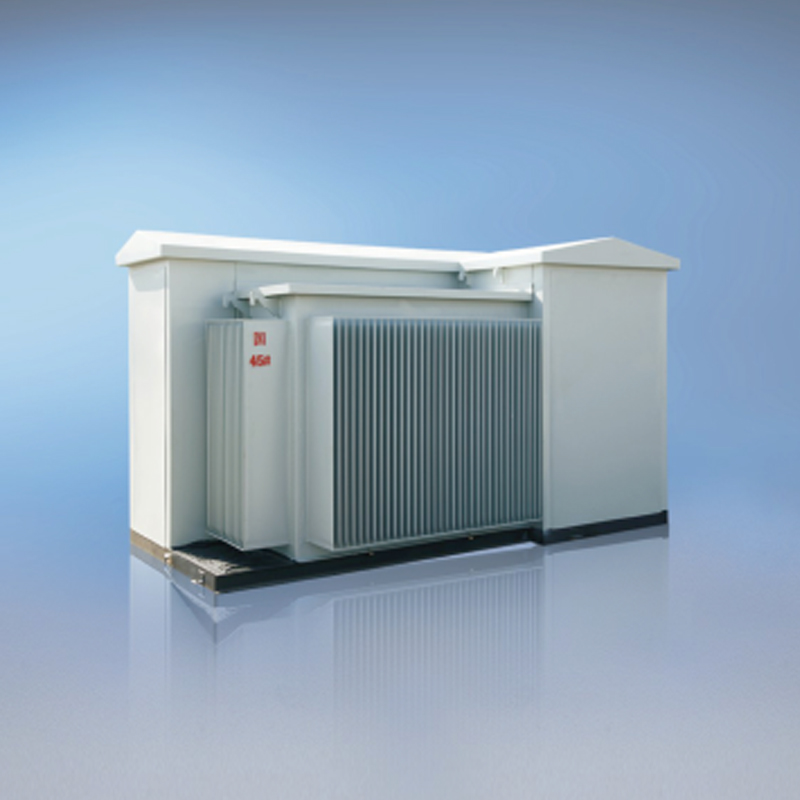

ZGS□-F 35 35kV Series American-Style Wind Power Box-Type Substation
Overview
ZGS□-F/35 series American wind power box-type substation (hereinafter referred to as box-type transformer) is a special equipment that increases the 0.6-0.69kV voltage generated by wind turbines to 35kV and then connects to the grid for output. Different from traditional box-type substations, high-voltage load switches, fuses, high-voltage components, transformer body, and non-excitation tap-changer are sealed in the same oil chamber, with a compact structure. Switchgear can be flexibly installed on the low-voltage side.This product is used in various wind power generation sites and is an ideal supporting product for wind power generation systems.
Normal use environment conditions
1.Cooling conditions: air self-cooling
2.Use environment:
The outdoor ambient temperature is not higher than 40℃ and not lower than -45℃. The altitude is not more than 2000m. The monthly average temperature is not more than 30℃ and the annual average temperature is not more than 20℃. At 25℃, the relative humidity of the air is not more than 95% and the monthly average is not more than 90%.
3.The horizontal acceleration shall not exceed 0.3g, and the vertical acceleration shall not exceed 0.15g.
4.The installation environment should be free of obvious dirt, explosiveness, corrosive gases and dust. The installation site should be free of severe vibration and impact. It is required to be installed on a cement platform or other flat and solid platform.
Note: Other situations beyond the technical requirements shall be handled through consultation between the user and our company.
Product Introduction
The ZGS□-F/35 series substation stands out from traditional box-type transformers with its compact integrated design. Unlike traditional systems, this substation integrates high-voltage load switches, fuses, high-voltage components and transformer bodies into one oil chamber. This unique configuration not only saves space, but also improves the reliability and safety of the system.The switchgear can be flexibly installed on the low-voltage side to better adapt to various installation scenarios. This design is particularly beneficial for wind farms that focus on space and efficiency.
The ZGS□-F/35 series can operate under specific environmental conditions and withstand a variety of outdoor climate conditions. It is designed to operate in a temperature range of -45℃ to 40℃, with an altitude limit of 2000 meters. The substation can withstand high humidity, with a maximum relative humidity of 95% at 25℃. These specifications ensure that the equipment can operate normally in different geographical locations, making it an ideal choice for wind farms with different climatic conditions. The substation is designed to withstand specific acceleration limits, ensuring stability and performance even in harsh conditions.
When installing the ZGS□-F/35 series, environmental factors need to be carefully considered to ensure that it achieves optimal performance. The installation site must be free of dirt, corrosive gases, dust, and severe vibration and shock. It is recommended to place the substation on a solid and flat platform, such as a cement foundation, to provide the necessary support and stability. These installation guidelines are essential to maintaining the integrity and service life of the equipment, ultimately helping to improve the overall efficiency of the wind power generation system.
The ZGS□-F/35 series American wind power box substation represents a major advancement in wind energy technology. Its compact design, strong environmental specifications and flexible installation options make it an ideal supporting product for wind power generation systems. As the world continues to transition to renewable energy, the ZGS□-F/35 series is ready to play a key role in harnessing wind energy and ensuring that clean energy is efficiently delivered to the grid for widespread use.
